5 Common Signs of Worn Piston Rings And How To Check Them

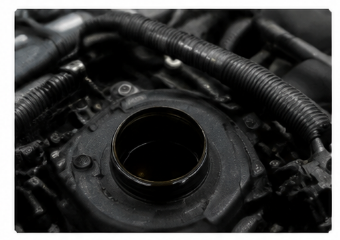

  The oil control ring manages the oil film on the cylinder wall. When it becomes worn or stuck,

excess oil may enter the combustion chamber and burn.
Typical symptoms include frequent oil top-ups, rapid oil level decrease, and blue exhaust smoke.
      However, valve seals, turbocharger seals, and other components can cause similar symptoms, so piston ring failure should be confirmed through inspection.

2. Blue Smoke from Exhaust

Seeing blue smoke does not always mean the piston rings are damaged.

The operating condition of the engine is an important clue when diagnosing the problem.

Blue smoke under acceleration or heavy load often points to sealing problems,

while smoke after cold start may be related to valve seals.

3. Loss of Power and Low Compression



Worn piston rings can allow combustion pressure to escape, reducing cylinder compression.

Possible symptoms include weak acceleration,

 reduced power, and difficult starting, especially on diesel engines.

Compression and leak-down tests help identify whether the problem comes from piston rings or other sealing parts.

4. Excessive Blow-by and Crankcase Pressure

   A small amount of blow-by is normal.

Excessive blow-by caused by worn piston rings may lead to oil mist,

leakage, and high crankcase pressure.

The crankcase ventilation system should also be checked because blockage can create similar symptoms.

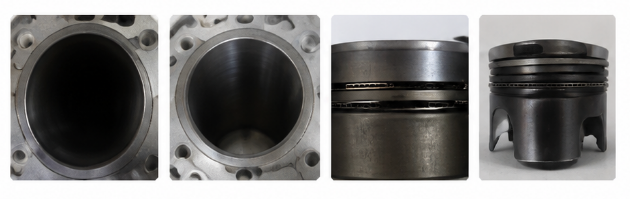

5. What Should Be Checked Before Replacing Piston Rings?

   Before replacing piston rings, the complete cylinder condition should be checked.
Important items include cylinder liner wear, bore condition, ring grooves, pistons, and liners. If other parts are seriously damaged, replacing piston rings alone may not restore engine performance.

FAQ

Q: Can replacing the piston rings always restore cylinder pressure?

A: Not necessarily. If there are issues with the cylinder liner, piston, or valve seals, replacing only the piston rings may not achieve the desired results.
Q: Does piston ring failure cause black smoke?
A: Usually no. Black smoke is mainly caused by incomplete combustion, while piston ring problems are more related to oil burning and blue smoke.
